Z3 (1994 - 2002)

SKU
PF_BS_BMW101
View options
  • Free shipping on orders over 100 euro in NL / BE / DE

  • Professional advice

  • Physical showroom

Options

Take into account the amount required per car.

Grouped product items

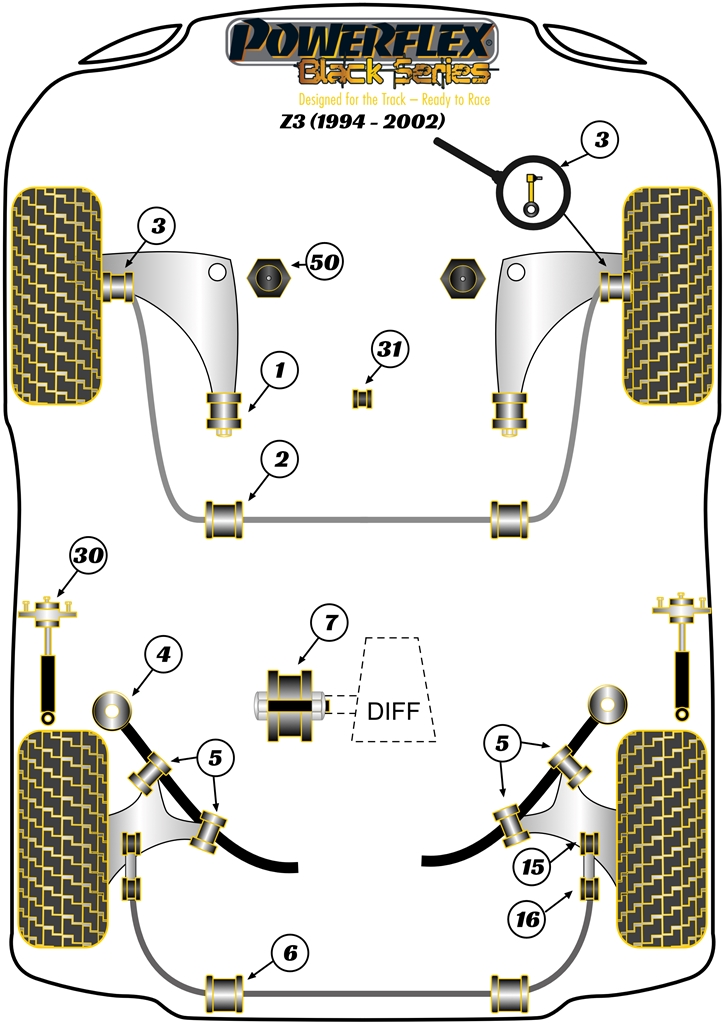

Quantity Product Amount required per car Ref. in diagram Art.no. Price
Front Lower Wishbone Rear Bush (Concentric) Front Lower Wishbone Rear Bush (Concentric) 2 1 PFF5-301BLK
€44.90
Front Lower Wishbone Rear Bush Caster Offset Front Lower Wishbone Rear Bush Caster Offset 2 1 PFF5-303BLK
€52.48
Front Wishbone Rear Bush, Aluminium Outer (Concentric) Front Wishbone Rear Bush, Aluminium Outer (Concentric) 2 1 PFF5-5301BLK
€100.95
Front Wishbone Rear Bush, Aluminium Outer Caster Offset Front Wishbone Rear Bush, Aluminium Outer Caster Offset 2 1 PFF5-5303BLK
€100.95
Front Anti Roll Bar Mounting Bush 23mm Front Anti Roll Bar Mounting Bush 23mm 2 2 PFF5-310-23BLK
€34.69
Front Anti Roll Bar Mounting Bush 24mm Front Anti Roll Bar Mounting Bush 24mm 2 2 PFF5-310-24BLK
€34.69
Front Anti Roll Bar Mounting Bush 25mm Front Anti Roll Bar Mounting Bush 25mm 2 2 PFF5-310-25BLK
€33.84
Front Anti Roll Bar Mounting Bush 26mm Front Anti Roll Bar Mounting Bush 26mm 2 2 PFF5-310-26BLK
€33.84
Front Anti Roll Bar Mounting 27mm Front Anti Roll Bar Mounting 27mm 2 2 PFF5-310-27BLK
€33.84
Front Anti Roll Bar Mounting 28mm Front Anti Roll Bar Mounting 28mm 2 2 PFF5-310-28BLK
€33.84
Front Anti Roll Bar Link Rod Bush Front Anti Roll Bar Link Rod Bush 2 3 PFF5-304BLK
€40.62

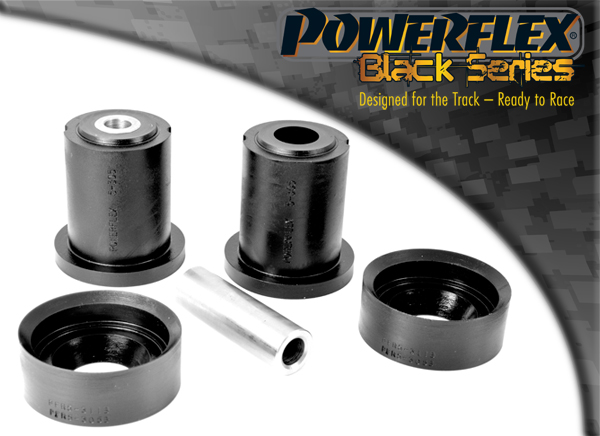

Rear Beam Bush Rear Beam Bush 2 4 PFR5-311BLK
€74.54
Rear Trailing Arm Bush Rear Trailing Arm Bush 4 5 PFR5-306BLK
€47.41
Rear Trailing Arm Bush Adjustable Rear Trailing Arm Bush Adjustable 4 5 PFR5-306GBLK
€69.47

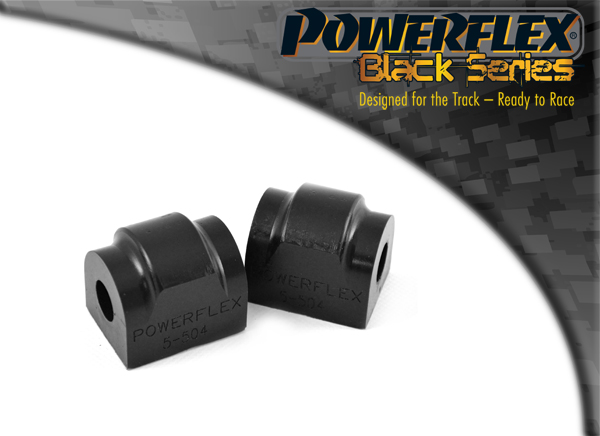

Rear Anti Roll Bar Mounting Bush 14mm Rear Anti Roll Bar Mounting Bush 14mm 2 6 PFR5-504-14BLK
€30.13
Rear Anti Roll Bar Mounting Bush 15mm Rear Anti Roll Bar Mounting Bush 15mm 2 6 PFR5-504-15BLK
€30.13
Front Anti Roll Bar Mounting Bush 18mm Front Anti Roll Bar Mounting Bush 18mm 2 6 PFR5-504-18BLK
€30.13
Front Anti Roll Bar Mounting Bush 19mm Front Anti Roll Bar Mounting Bush 19mm 2 6 PFR5-504-19BLK
€30.13
Rear Diff Mounting Bush Rear Diff Mounting Bush 1 7 PFR5-300BLK
€66.89
Rear ARB End Link To Arm Bush Rear ARB End Link To Arm Bush 2 15 PFR5-315BLK
€38.91
Rear ARB End Link To Bar Bush Rear ARB End Link To Bar Bush 2 16 PFR5-316BLK
€31.27
Rear Shock Top Mount Bracket and Bush 10mm Rear Shock Top Mount Bracket and Bush 10mm 2 30 PFR5-5630-10BLK
€82.17
Rear Shock Top Mount Bracket and Bush 12mm Rear Shock Top Mount Bracket and Bush 12mm 2 30 PFR5-5630-12BLK
€82.17
Shifter Arm Rear Bush Shifter Arm Rear Bush 1 32 PFF5-4632BLK
€48.47
Engine Mount Engine Mount 2 50 PFF5-4650BLK
€282.35
Transmission Mounting Bush (Motorsport) Transmission Mounting Bush (Motorsport) 2 55 PFF5-4655BLK
€63.90

Details

PFF5-303 is an eccentric bush for the M Series or where increased caster is required.

Please check front and rear anti-roll bar size before ordering.

PFF5-304 is designed to fit models where the Anti Roll Bar joins the lower arm, not the shock absorber. They will not fit the M' versions as a consequence.

For the rear trailing arms use either PFR5-306 or on-car adjustable bushes PFR5-306G

PFR5-5630-10 fits cars with standard or aftermarket rear shock absorber with a 10mm pin, PFR5-5630-12 fits cars with aftermarket rear shock absorbers with a 12mm pin.
