Sport Quattro (1984-1985) Coupe Quattro (1985-1991) UR Quattro (1980-1991)

Name: Sport Quattro (1984-1985) Coupe Quattro (1985-1991) UR Quattro (1980-1991)
SKU: PF_BS_AU7
Availability: InStock

SKU

PF_BS_AU7

Options

Grouped product items

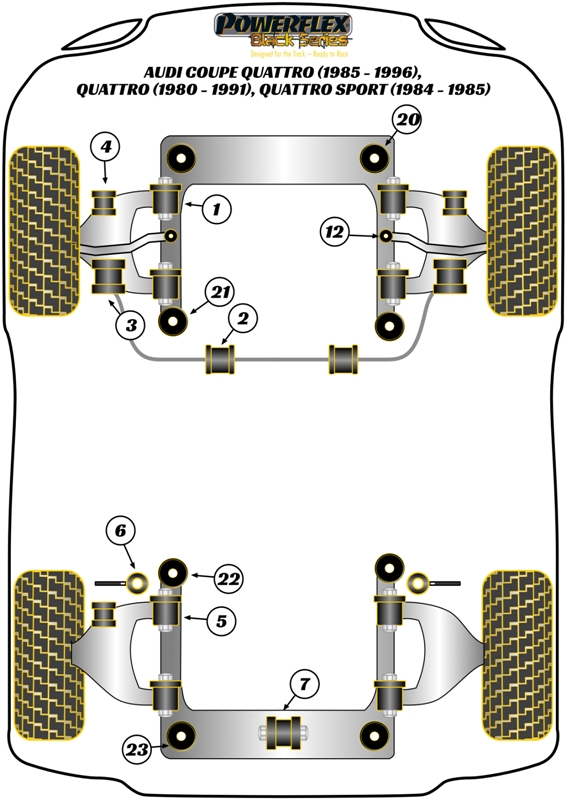

	Amount required per car	Ref. in diagram	Art.no.	Price
Front Wishbone Bush	4	1	PFF3-102BLK	€37.69
Front Anti Roll Bar Mount 24mm	2	2	PFF3-103-24BLK	€30.13
Front Anti Roll Bar Mount 25mm	2	2	PFF3-103-25BLK	€30.13
Front Anti Roll Bar Mount 25mm	2	2	PFR3-1011-25BLK	€30.13
Front ARB Drop Link to Wishbone Bush 12mm	2	3	PFF3-105-12BLK	€32.13
Front ARB Drop Link to Wishbone Bush 16mm	2	3	PFF3-105BLK	€31.27
Front Anti Roll Bar To Control Arm Bush	2	3	PFF3-106-21.5BLK	€30.77
Front Anti Roll Bar To Control Arm Bush	2	3	PFF3-106-23.5BLK	€30.77
Front Anti Roll Bar Drop Link Upper Bush	2	4	PFF3-104BLK	€31.27
Rear Wishbone Bush	4	5	PFF3-101BLK	€40.76

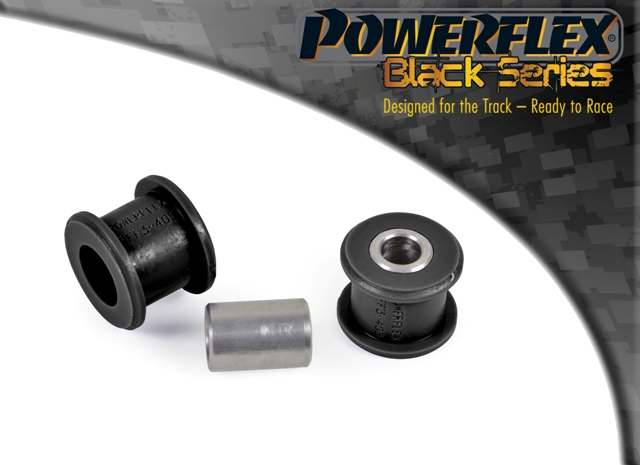

Rear Tie Rod Inner Bush	2	6	PFF3-405BLK	€32.34
Rear Differential Mount	1	7	PFR3-107BLK	€62.40

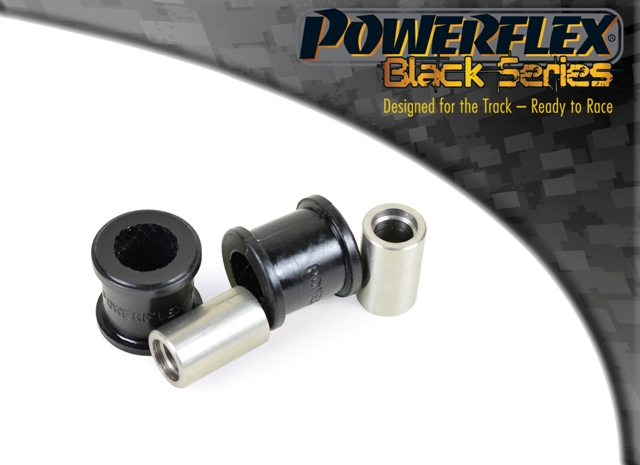

Front Steering Tie Rod Bush	2	12	PFF3-112BLK	€36.19
Rear Subframe Front Bush 10mm	2	22	PFF3-121-10BLK	€47.41
Rear Subframe Front Bush 12mm	2	22	PFF3-121-12BLK	€47.41
Rear Subframe Rear Bush 10mm	2	23	PFF3-120-10BLK	€49.11
Rear Subframe Rear Bush 12mm	2	23	PFF3-120-12BLK	€49.11

PFF3-101BLK Fits 37mm Pressed Front Arms
PFF3-102BLK Fits 45mm Cast Front Arms (20v Only)
PFF3-104BLK & PFF3-105BLK Only Fit Up To 1992 Chassis Number 8A-N-200-000
PFF3-106-21.5BLK Fits models where there is no link rod between the anti roll bar and control arm.
PFR3-1011-21/23.5/25BLK Front anti roll bar mounts are tear drop shaped
PFF3-120-10BLK & PFF3-121-10BLK fit vehicles with 10mm mounting bolts, vehicles with 12mm bolts use PFF3-120-12BLK & PFF3-121-12BLK

PFF3-120-10BLK, PFF3-120-12BLK, PFF3-121-10BLK & PFF3-121-12BLK Can also be aplied to the rear subframe (diagram reference 22 and 23)
