E81, E82, E87 & E88 (2004 - 2013)

SKU
PF_RS_BMW3
View options

  • Free shipping on orders over 100 euro in NL / BE / DE

  • Professional advice

  • Physical showroom

main product photo

Options

Take into account the amount required per car.

Grouped product items

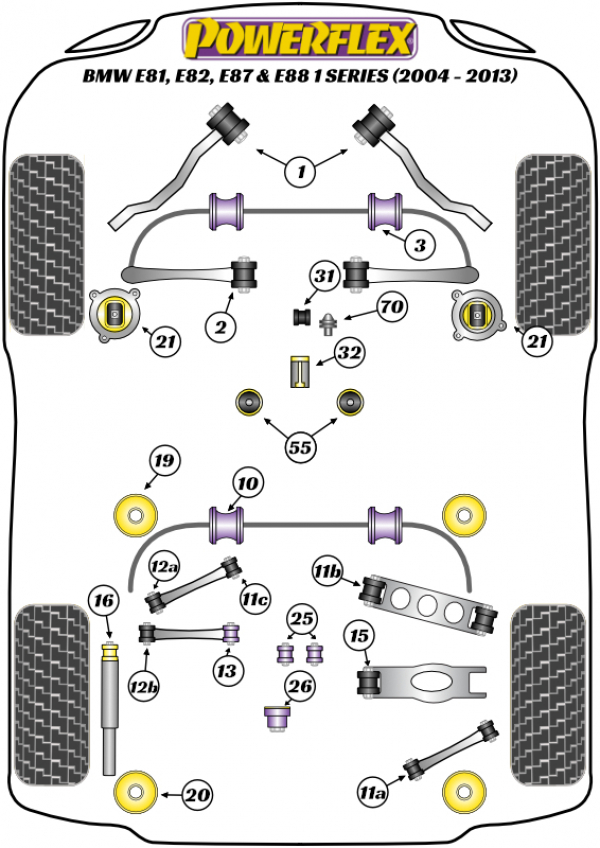

Quantity Product Amount required per car Ref. in diagram Art.no. Price
Engine Mount Insert Kit Engine Mount Insert Kit PFF5-4020
€49.26
BMW / Mini / Rolls Royce Jack Pad Adaptor BMW / Mini / Rolls Royce Jack Pad Adaptor 1 0 PF5-4660
€26.91
Front Radius Arm To Chassis Bush Front Radius Arm To Chassis Bush 2 1 PFF5-401
€83.95
Front Radius Arm To Chassis Bush Caster Adjust Front Radius Arm To Chassis Bush Caster Adjust 2 1 PFF5-401G
€107.09
Front Track Control Arm Inner Bush Front Track Control Arm Inner Bush 2 2 PFF5-402
€70.89
Front Anti Roll Bar Mounting Bush 26.5mm Front Anti Roll Bar Mounting Bush 26.5mm 2 3 PFF5-4602-26.5
€33.84
Rear Anti Roll Bar Bush 11mm Rear Anti Roll Bar Bush 11mm 2 10 PFR5-4609-11
€33.84
Rear Anti Roll Bar Bush 12mm Rear Anti Roll Bar Bush 12mm 2 10 PFR5-4609-12
€33.84
Rear Anti Roll Bar Bush 13mm Rear Anti Roll Bar Bush 13mm 2 10 PFR5-4609-13
€33.84
Rear Anti Roll Bar Bush 14mm Rear Anti Roll Bar Bush 14mm 2 10 PFR5-4609-14
€33.84
Rear Anti Roll Bar Bush 15mm Rear Anti Roll Bar Bush 15mm 2 10 PFR5-4609-15
€33.84
Rear Trailing Arm Outer Bush Rear Trailing Arm Outer Bush 2 11c PFR5-411
€59.33
Rear Upper Lateral Arm To Hub Bush Rear Upper Lateral Arm To Hub Bush 2 12b PFR5-412
€61.61
Rear Upper Lateral Arm To Chassis Bush Rear Upper Lateral Arm To Chassis Bush 2 13 PFR5-413
€81.68
Rear Lower Lateral Arm To Chassis Bush Rear Lower Lateral Arm To Chassis Bush 2 15 PFR5-415
€50.05
Rear Shock Absorber Upper Mounting Bush 10mm Rear Shock Absorber Upper Mounting Bush 10mm 2 16 PFR5-416
€43.91
Rear Shock Absorber Upper Mounting Bush 12mm Rear Shock Absorber Upper Mounting Bush 12mm 2 16 PFR5-416-12
€43.91
Rear Subframe Front Mounting Bush Anti-Squat (Fast Road) Rear Subframe Front Mounting Bush Anti-Squat (Fast Road) 2 19 PFR5-1220
€101.74
Rear Subframe Front Mounting Insert Rear Subframe Front Mounting Insert 2 19 PFR5-419
€44.62
Rear Subframe Front Mounting Bush (Road) Rear Subframe Front Mounting Bush (Road) 2 19 PFR5-420
€100.16
Rear Subframe Front Mounting Bush (Fast Road) Rear Subframe Front Mounting Bush (Fast Road) 2 19 PFR5-420P
€100.16
Rear Subframe Rear Mounting Insert Rear Subframe Rear Mounting Insert 2 20 PFR5-421
€43.12
Rear Subframe Rear Mounting Bush (Road) Rear Subframe Rear Mounting Bush (Road) 2 20 PFR5-422
€84.74
Rear Subframe Rear Mounting Bush (Fast Road) Rear Subframe Rear Mounting Bush (Fast Road) 2 20 PFR5-422P
€93.23
Rear Subframe Rear Mounting Insert Rear Subframe Rear Mounting Insert 2 20 PFR5-423
€43.12
Rear Diff Front Mounting Bush Rear Diff Front Mounting Bush 2 25 PFR5-425
€50.05
Rear Diff Rear Mounting Bush Rear Diff Rear Mounting Bush 1 26 PFR5-426
€58.54
Gear Shift Arm Front Bush Round Gear Shift Arm Front Bush Round 1 31 PFF5-4630
€30.77
Gear Shift Arm Front Bush Oval Gear Shift Arm Front Bush Oval 1 31 PFF5-4631
€29.98
Shift Arm Front Bush Oval Shift Arm Front Bush Oval 2 31 PFF5-4633
€29.98
Shifter Arm Rear Bush Shifter Arm Rear Bush 1 32 PFF5-4632
€44.62
Transmission Mounting Bush (Fast Road) Transmission Mounting Bush (Fast Road) 2 55 PFF5-4655
€57.75
Transmission Mounting Bush (Track) Transmission Mounting Bush (Track) 2 55 PFF5-4655P
€57.75
Clutch Fork Pivot Pin Clutch Fork Pivot Pin 1 70 PFF5-470
€30.77

Details

  • These parts will not fit the E82 1-Series M-Coupe or X Drive (4wd) models
  • PFR5-419, PFR5-421 and PFR5-423 are inserts to be used with the original rear subframe bushes
  • PFR5-421 Rear Subframe Rear Bush Insert fits all models up to -07/2005 (pre-LCI). Then Petrol models only from 07/2005- on (LCI)
  • PFR5-423 Rear Subframe Rear Bush Inserts fit Diesel cars from 07/2005- onwards (LCI)
  • PFR5-420 and PFR5-422 are complete replacements for the original bushes
  • PFR5-1220 is a complete replacement bush for non-M models to raise the front of the rear subframe by 9mm providing the same anti-squat characteristic during acceleration as featured on M model vehicles and is recommended to be used with PFR5-422P
  • PFR5-416-12 fits performance shock absorbers with a 12mm thread
  • For standard shock absorbers and performance shock absorber with a 10mm thread use PFR5-416
  • PFF5-4020 only fits the cars with the N54
  • PFF5-470 only fits vehicles with manual transmission.
