A3 Mk1 8L 2WD (1996-2003)

Name: A3 Mk1 8L 2WD (1996-2003)
SKU: PF_BS_AU19
Availability: InStock

SKU

PF_BS_AU19

Options

Grouped product items

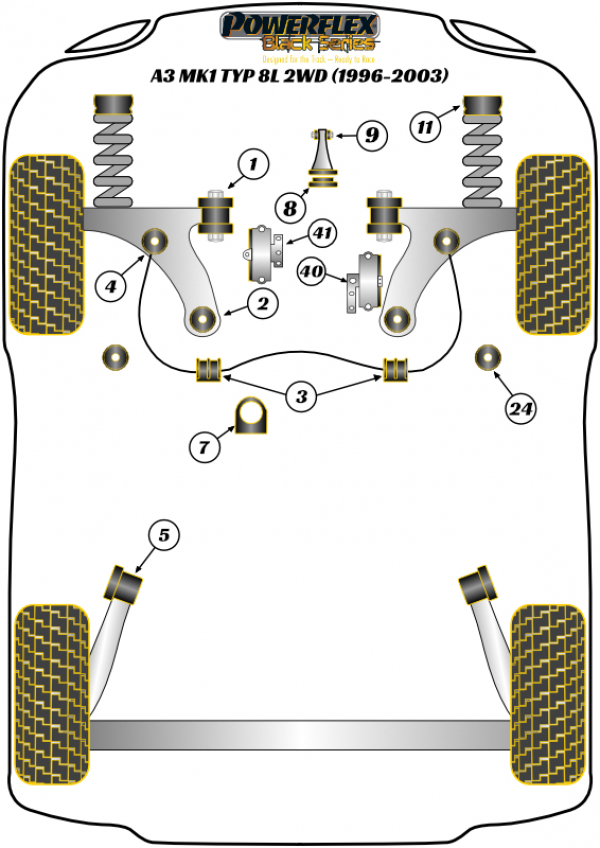

	Amount required per car	Ref. in diagram	Art.no.	Price
Front Wishbone (Cast) Front Bush 45mm	2	1	PFF3-501BLK	€48.25
Front Wishbone (Cast) Front Bush 45mm Camber Adjustable	2	1	PFF3-501GBLK	€86.31
Front Wishbone Front Bush 30mm	2	1	PFF85-201BLK	€44.04
Front Wishbone Front Bush 30mm Camber Adjustable	2	1	PFF85-201GBLK	€66.25
Front Wishbone (Cast) Rear Bush	2	2	PFF3-610BLK	€51.69
Front Wishbone Rear Bush	2	2	PFF85-410BLK	€52.48
Front Wishbone Rear Bush, Pattern Arm	2	2	PFF85-410PABLK	€52.48
Front Wishbone Rear Bush (Track/Race)	2	2	PFF85-414BLK	€124.07
Front Anti Roll Bar Mount 21mm	2	3	PFF85-411-21BLK	€30.13
Front Anti Roll Bar Mount 23mm	2	3	PFF85-411-23BLK	€30.13
Front Anti Roll Bar Link Bush Kit	2	4	PFF85-412BLK	€52.48
Front Anti Roll Bar Link Bush Kit	2	4	PFF85-413BLK	€42.34
Rear Beam Mounting Bush	2	5	PFR85-610BLK	€59.33
Steering Rack Mount Bush	1	7	PFF85-416BLK	€38.13
Front Engine Mount Dog Bone (Motorsport)	1	8	PFF85-420BLK	€53.32
Lower Engine Mount Small Bush	1	9	PFF85-505BLK	€43.12
Front Strut Top Mount Bush	2	11	PFF85-430BLK	€53.32
Front Strut Top Mount Bush -10mm	2	11	PFF85-431BLK	€64.40
Front Subframe Rear Bush	2	24	PFF85-424BLK	€50.83
Upper Engine Mount Insert	1	40	PFF85-440BLK	€38.91
Upper Gearbox Mount Insert	1	41	PFF85-441BLK	€38.91

PFF85-412 fit aluminium link rods, PFF85-413 fit plastic link rods, they do not fit link rods using ball joints
For pressed steel front wishbones use PFF85-201 & PFF85-410
For cast wishbones use PFF85-201 or PFF3-501 & PFF3-610. On cast wishbones the later cars have a larger 45mm bush, in this case please use PFF3-501. For earlier cars with a 30mm bush please use PFF85-201.
PFF85-414 Is for Race use and is a rose joint type bush, it fits both pressed steel and cast wishbones
