80, 90 Quattro inc Avant (1983-1992) S2 Coupe B3 (1991-1996)

SKU
PF_RS_AU3
View options

  • Free shipping on orders over 100 euro in NL / BE / DE

  • Professional advice

  • Physical showroom

main product photo

Options

Take into account the amount required per car.

Grouped product items

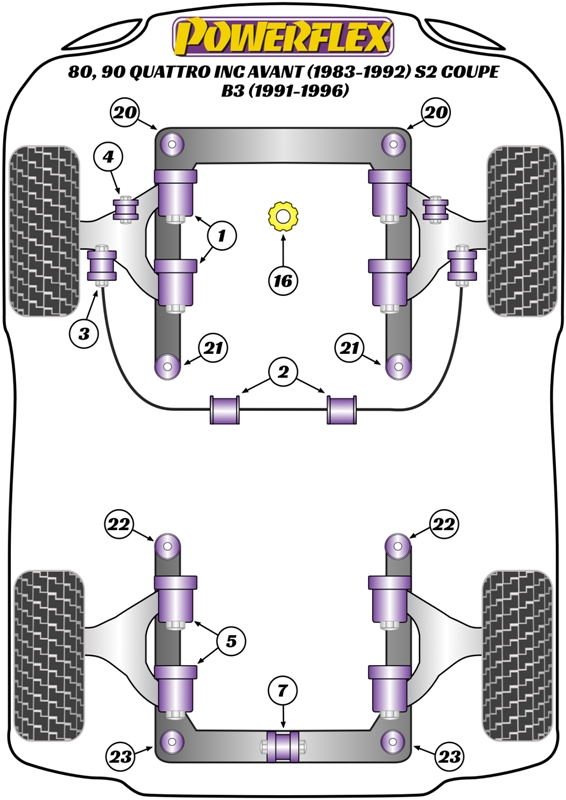

Quantity Product Amount required per car Ref. in diagram Art.no. Price
PowerAlign Wheel Mounting Guide Pin PowerAlign Wheel Mounting Guide Pin PF99-514-15
€36.19
Front Wishbone Bush Front Wishbone Bush 2 2 PFF3-102
€37.69
Front Anti Roll Bar Mount 24mm Front Anti Roll Bar Mount 24mm 2 2 PFF3-103-24
€27.35
Front Anti Roll Bar Mount 25mm Front Anti Roll Bar Mount 25mm 2 2 PFF3-103-25
€27.35

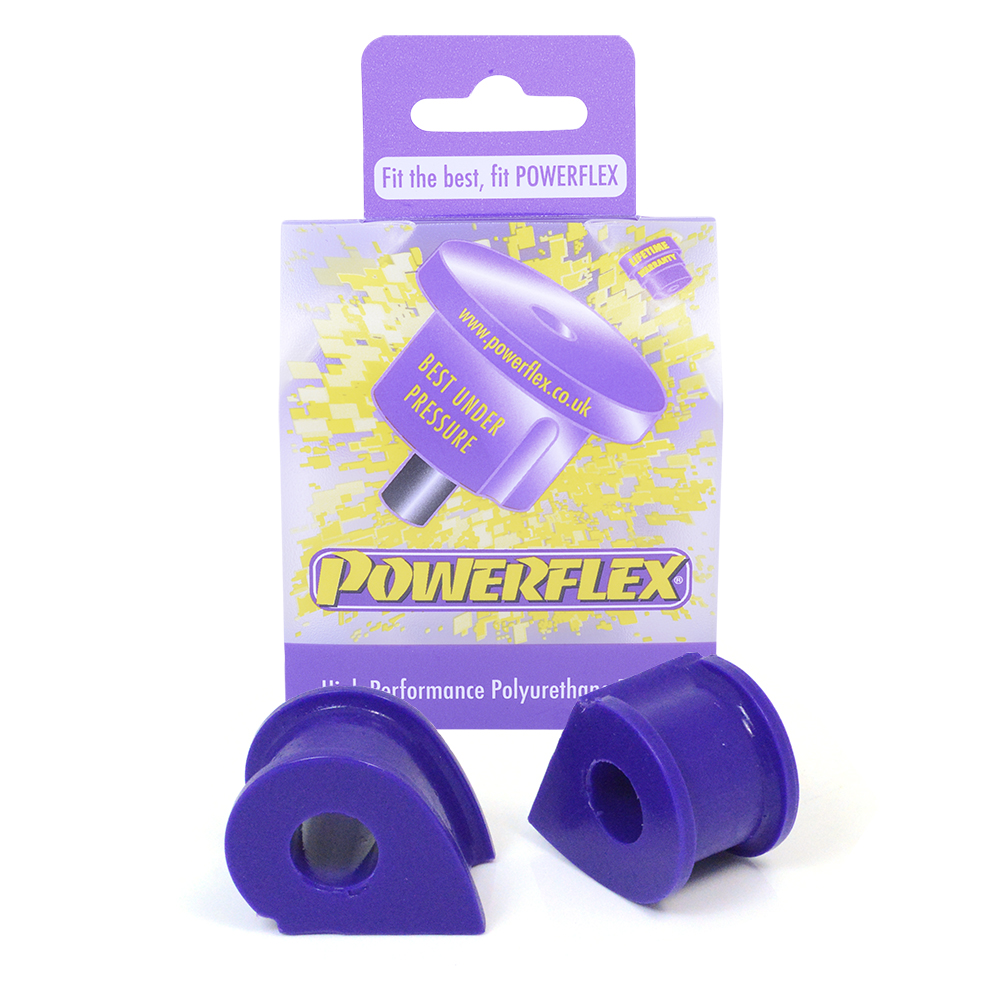

Front Anti Roll Bar Mount 21mm Front Anti Roll Bar Mount 21mm 2 2 PFR3-1011-21
€27.35
Front Anti Roll Bar Mount 23.5mm Front Anti Roll Bar Mount 23.5mm 2 2 PFR3-1011-23.5
€27.35
Front Anti Roll Bar Mount 25mm Front Anti Roll Bar Mount 25mm 2 2 PFR3-1011-25
€27.35
Front ARB Drop Link to Wishbone Bush 16mm Front ARB Drop Link to Wishbone Bush 16mm 2 3 PFF3-105
€28.48
Front ARB Drop Link to Wishbone Bush 12mm Front ARB Drop Link to Wishbone Bush 12mm 2 3 PFF3-105-12
€29.20
Front Anti Roll Bar To Control Arm Bush Front Anti Roll Bar To Control Arm Bush 2 3 PFF3-106-21.5
€27.70
Front Anti Roll Bar To Control Arm Bush Front Anti Roll Bar To Control Arm Bush 2 3 PFF3-106-23.5
€27.70
Front Anti Roll Bar Drop Link Upper Bush Front Anti Roll Bar Drop Link Upper Bush 2 4 PFF3-104
€28.48
Rear Wishbone Bush Rear Wishbone Bush 4 5 PFF3-101
€40.76

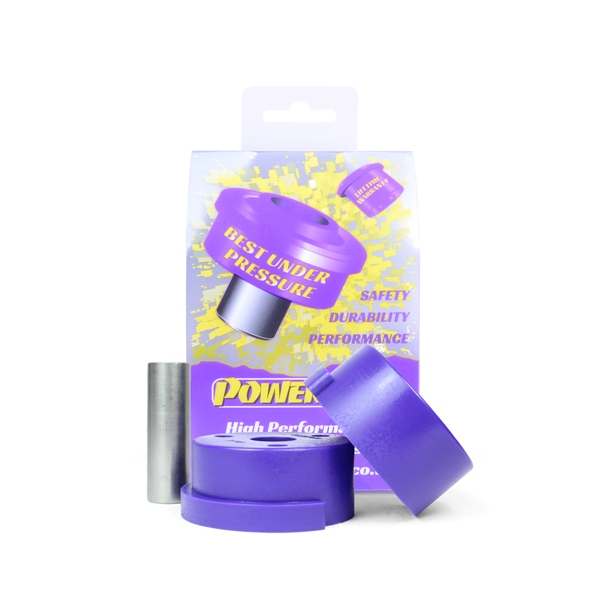

Rear Differential Mount Rear Differential Mount 1 7 PFR3-107
€56.97

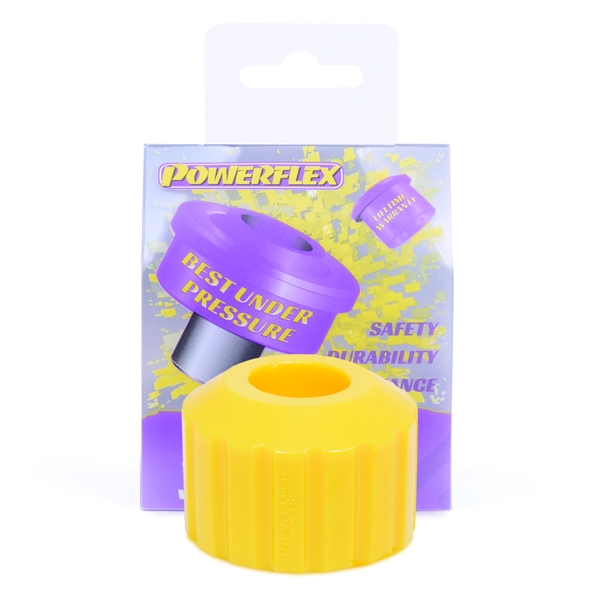

Engine Snub Nose Mount Engine Snub Nose Mount 1 16 PFF3-220
€38.48
Rear Subframe Front Bush 10mm Rear Subframe Front Bush 10mm 2 22 PFF3-121-10
€43.12
Rear Subframe Front Bush 12mm Rear Subframe Front Bush 12mm 2 22 PFF3-121-12
€43.12
Rear Subframe Rear Bush 10mm Rear Subframe Rear Bush 10mm 2 23 PFF3-120-10
€44.62
Rear Subframe Rear Bush 12mm Rear Subframe Rear Bush 12mm 2 23 PFF3-120-12
€44.62

Details

  • PFF3-101 Fits 37mm Pressed Front Arms
  • PFF3-102 Fits 45mm Cast Front Arms
  • PFF3-104 & PFF3-105 Only Fit Up To 1992 Chassis Number 8A-N-200-000
  • PFF3-106-21.5 Fits models where there is no link rod between the anti-roll bar and control arm.
  • PFR3-1011-21/23.5/25 Front anti-roll bar mounts are tear-drop shaped
  • PFF3-120-10 & PFF3-121-10 fit vehicles with 10mm mounting bolts, vehicles with 12mm bolts use PFF3-120-12 & PFF3-121-12
  • PFF3-101 Can also be aplied to the rear wishbone (diagram reference 5)
  • PFF3-120-10, PFF3-120-12, PFF3-121-10 & PFF3-121-12  Can also be aplied to the rear subframe (diagram reference 22 and 23)
