80, 90 inc Avant (1973 - 1996)

Name: 80, 90 inc Avant (1973 - 1996)
SKU: PF_BS_AU2
Availability: InStock

SKU

PF_BS_AU2

Options

Grouped product items

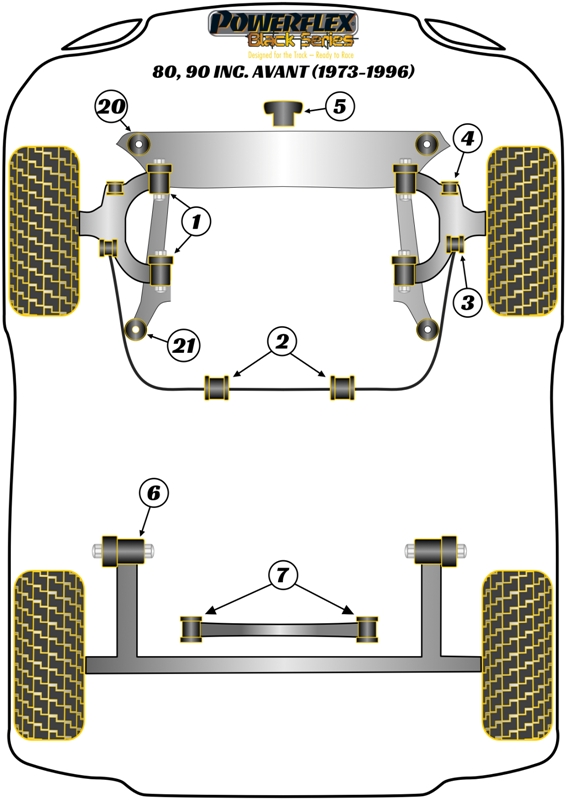

	Amount required per car	Ref. in diagram	Art.no.	Price
PowerAlign Camber Bolt Kit (12mm x 60mm)	1		PFA100-12	€32.49
Rear Wishbone Bush	4	1	PFF3-101BLK	€40.76
Front Wishbone Bush	4	1	PFF3-102BLK	€37.69
Front Anti Roll Bar Mount 24mm	2	2	PFF3-103-24BLK	€30.13
Front Anti Roll Bar Mount 25mm	2	2	PFF3-103-25BLK	€30.13
Front ARB Drop Link to Wishbone Bush 12mm	2	3	PFF3-105-12BLK	€32.13
Front ARB Drop Link to Wishbone Bush 16mm	2	3	PFF3-105BLK	€31.27
Front Anti Roll Bar To Control Arm Bush	2	3	PFF3-106-21.5BLK	€30.77
Front Anti Roll Bar To Control Arm Bush	2	3	PFF3-106-23.5BLK	€30.77
Front Anti Roll Bar Drop Link Upper Bush	2	4	PFF3-104BLK	€31.27
Engine Mount Stopper Bush	1	5	PFF85-235BLK	€38.91
Rear Beam Front Location Bush	2	6	PFR3-110BLK	€47.41

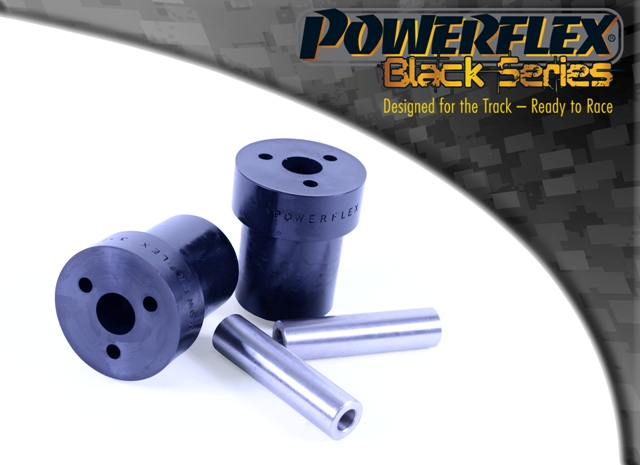

Rear Beam Front Location Bush	2	6	PFR3-111BLK	€47.76
Rear Panhard Rod Bush	2	7	PFR3-109BLK	€38.13
Rear Subframe Rear Bush 10mm	2	20	PFF3-120-10BLK	€49.11
Rear Subframe Rear Bush 12mm	2	20	PFF3-120-12BLK	€49.11
Rear Subframe Front Bush 10mm	2	21	PFF3-121-10BLK	€47.41
Rear Subframe Front Bush 12mm	2	21	PFF3-121-12BLK	€47.41

PFF3-101 are for Pressed arms (37mm)
PFF3-102 are for Cast arms (45mm)
PFF3-104 & PFF3-105 fit models up to 1994 - VIN No. 8B-L-003-791. These will not fit metal ball-jointed drop links.
PFR3-110 fits models up to 1992 - VIN No. 8A-N-200-000
PFR3-111 fits after models 1992.
PFR3-1011-21 & -23.5 front anti-roll bar mounts are teardrop shaped.
PFF3-106-21.5 fits models where there is no link rod between the anti-roll bar and control arm.
PFF3-120-10 & PFF3-121-10 fit vehicles with 10mm mounting bolts. For vehicles with 12mm bolts use PFF3-120-12 & PFF3-121-12
PFA100-12 and PFA100-14 fit 2 bolt hub to strut models only. Check bolt diameter.
