7 METRIC CHASSIS DEDION WITHOUT WATTS LINKAGE (2006 ON)

Name: 7 METRIC CHASSIS DEDION WITHOUT WATTS LINKAGE (2006 ON)
SKU: PF_RS_CAT4
Availability: InStock

SKU

PF_RS_CAT4

Options

Grouped product items

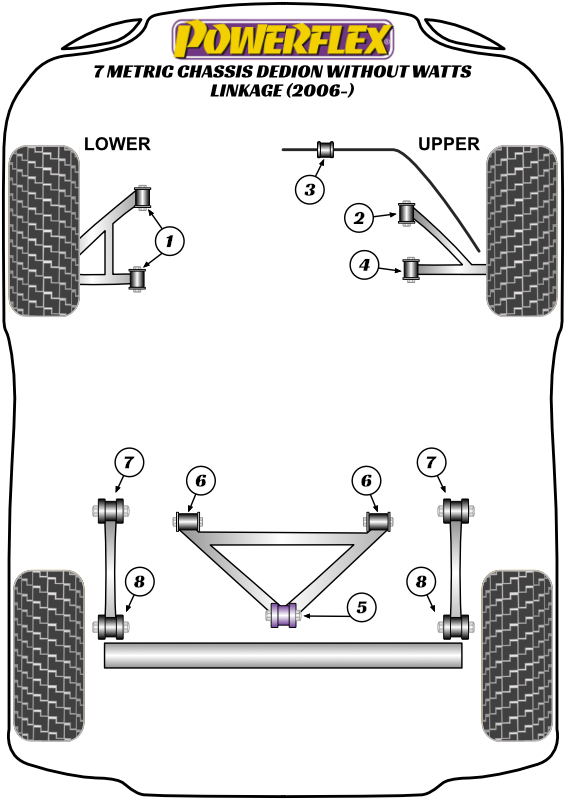

	Amount required per car	Ref. in diagram	Art.no.	Price
Front Upper Wishbone Front Bush	2	2	PF8-902	€50.09
Front Anti Roll Bar Bush 12.5mm	2	3	PF8-905-12.5	€29.69
Front Anti Roll Bar Bush 14.5mm	2	3	PF8-905-14.5	€29.69
Front Anti Roll Bar Bush 16mm	2	3	PF8-905-16	€29.69
Front Anti Roll Bar Bush 19mm	2	3	PF8-905-19	€29.69
Front Upper Wishbone Rear Bush	2	4	PF8-904-10	€39.13
DeDion "A" Frame Centre Bush	1	5	PF8-903	€43.05
DeDion "A" Frame Centre Bush	1	5	PF8-907	€44.65
Radius Arm Front Bush	2	7	PF8-909-10	€36.01
Radius Arm Rear Bush	2	8	PF8-201	€43.85

Drawing reference no.5, Vehicles to 1996 use PF8-903, Vehicles after 1996 use PF8-907
For vehicles with DeDion rear suspension but without Watts Linkage
